Total Station
ЁЯУД Leica Flexline Manual User Guide.PDF

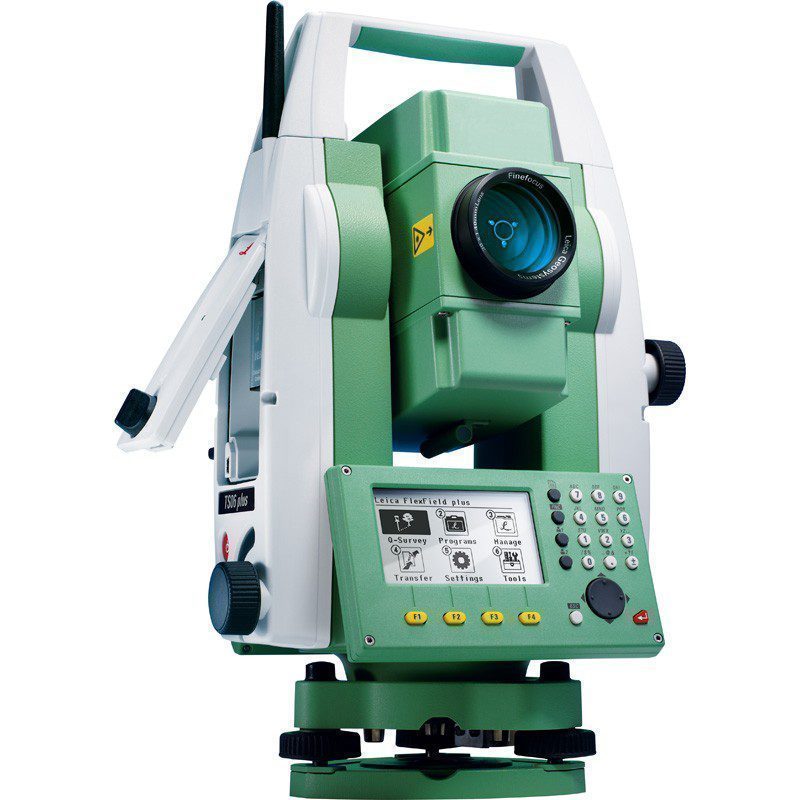

A total station (TS) or total station theodolite (TST) is an electronic/optical instrument used for surveying and building construction. It is an electronic transit theodolite integrated with electronic distance measurement (EDM) to measure both vertical and horizontal angles and the slope distance from the instrument to a particular point, and an on-board computer to collect data and perform triangulation calculations.
рдЕрддреНрдпрдзрд┐рдХ рдкрдврд╝рд╛ рдЧрдпрд╛ рд▓реЗрдЦ: 6M+ рдкрд╛рдардХ
рд╕рдирд╛рддрди рд╕рдВрд╕реНрдХреГрддрд┐ рдореЗ рдкреМрд░рд╛рдгрд┐рдХ рдХрдерд╛рдУрдВ рдХреЗ рд╕рд╛рде-рд╕рд╛рде рдордВрддреНрд░, рдЖрд░рддреА рдФрд░ рдкреБрдЬрд╛-рдкрд╛рда рдХрд╛ рд╡рд┐рдзрд┐-рд╡рд┐рдзрд╛рди рдкреВрд░реНрд╡рдХ рд╡рд░реНрдгрди рдХрд┐рдпрд╛ рдЧрдпрд╛ рд╣реИред рдпрд╣рд╛рдБ рдкрдврд╝реЗ:-
Robotic or motorized total stations allow the operator to control the instrument from a distance via remote control. This eliminates the need for an assistant staff member as the operator holds the retroreflector and controls the total station from the observed point. These motorized total stations can also be used in automated setups knows as Automated Motorized Total Station (AMTS).
Function
Angle measurement
Most total station instruments measure angles by means of electro-optical scanning of extremely precise digital bar-codes etched on rotating glass cylinders or discs within the instrument. The best quality total stations are capable of measuring angles to 0.5 arc-second. Inexpensive “construction grade” total stations can generally measure angles to 5 or 10 arc-seconds.
Distance measurement
Measurement of distance is accomplished with a modulated infrared carrier signal, generated by a small solid-state emitter within the instrument’s optical path, and reflected by a prism reflector or the object under survey. The modulation pattern in the returning signal is read and interpreted by the computer in the total station.
The distance is determined by emitting and receiving multiple frequencies, and determining the integer number of wavelengths to the target for each frequency. Most total stations use purpose-built glass prism (surveying) reflectors for the EDM signal. A typical total station can measure distances with an accuracy of about 1.5 millimeters (0.0049 ft) + 2 parts per million over a distance of up to 1,500 meters (4,900 ft).
Reflectorless total stations can measure distances to any object that is reasonably light in color, up to a few hundred meters.
Coordinate measurement
The coordinates of an unknown point relative to a known coordinate can be determined using the total station as long as a direct line of sight can be established between the two points. Angles and distances are measured from the total station to points under survey, and the coordinates (X, Y, and Z or easting, northing and elevation) of surveyed points relative to the total station position are calculated using trigonometry and triangulation.
To determine an absolute location a Total Station requires line of sight observations and can be set up over a known point or with line of sight to 2 or more points with known location, called free stationing.
For this reason, some total stations also have a Global Navigation Satellite System receiver and do not require a direct line of sight to determine coordinates. However, GNSS measurements may require longer occupation periods and offer relatively poor accuracy in the vertical axis.
